Vari-Lite ACCLAIM LED CYC
Vari-Lite ACCLAIM LED CYC

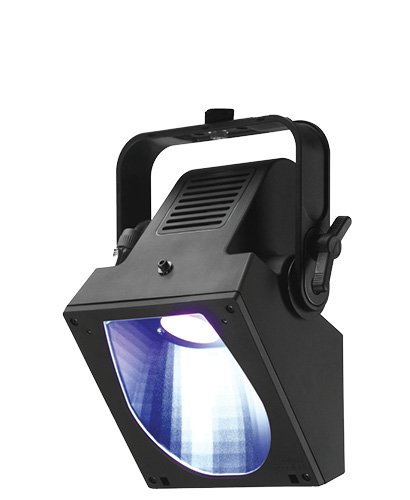

A breakthrough in cyclorama lighting, the Acclaim LED Cyc luminaire delivers smooth even cyclorama lighting in a compact lightweight design. Using just 145 watts of power to illuminate drops up to 5 meters high each unit can replace the equivalent of a traditional 4 color 500 watt luminaire.
A typical cyc can be powered from a single circuit using our convenient TrueOne compatible cabling system for power along with standard DMX cables. The Acclaim LED Cyc Luminaire may be used for top or bottom lighting with units spaced on 1.2 meter (4ft) from the cylorama @ 1.4 meter (4.5ft) centers for optimum performance and value.
APENAS POR ENCOMENDA
A sua encomenda será colocada directamente ao nosso fornecedor.
Features
Delivers the performance of a 500 W cyclight with a maximum power consumption of 145 W with a smooth even field for cycloramas up to 5m / 16ft high
Simple spacing system 1.2m - 4ft from cyc surface 1.4m / 4.5ft on center spacing
Designed for top or floor mounting with kick stand yoke
Infinite color choice from the RGBL engine and color temperatures in white
Homogenized fully mixed color output light, no multiple color shadows
Constant color balance down to very low light levels irrespective of intensity setting.
True asymmetrical patented reflector technology
RDM controls and setup of fixture allows device settings to be configured remotely
Color Calibration
Multiple fan/noise control modes and options
Fresnel, Profile Light engine and Zoomspot available
Product Summary, Documentation
Lumens
5800
CRI RA
7100 K - 82, 5600 K - 86, 3200 K - 83
Zoom Range
42° Vertical / 38° Horizontal
Source Type
True RGBL LED engine, using custom designed LED array
Warranty
Input Voltage
100-240 VAC, 50 / 60 Hz
Source Max Power Use
140 W
Environment
IP20
Approbations
ETL (UL & CSA)CB/IECEE Scheme for CE-LVD,FCC,ICES,RCM,CE-EMC,UKCA,RoHS, ISO 9001
