BeamZ Pro - BWA550Z Outdoor PRO PAR with Zoom

699,00 €

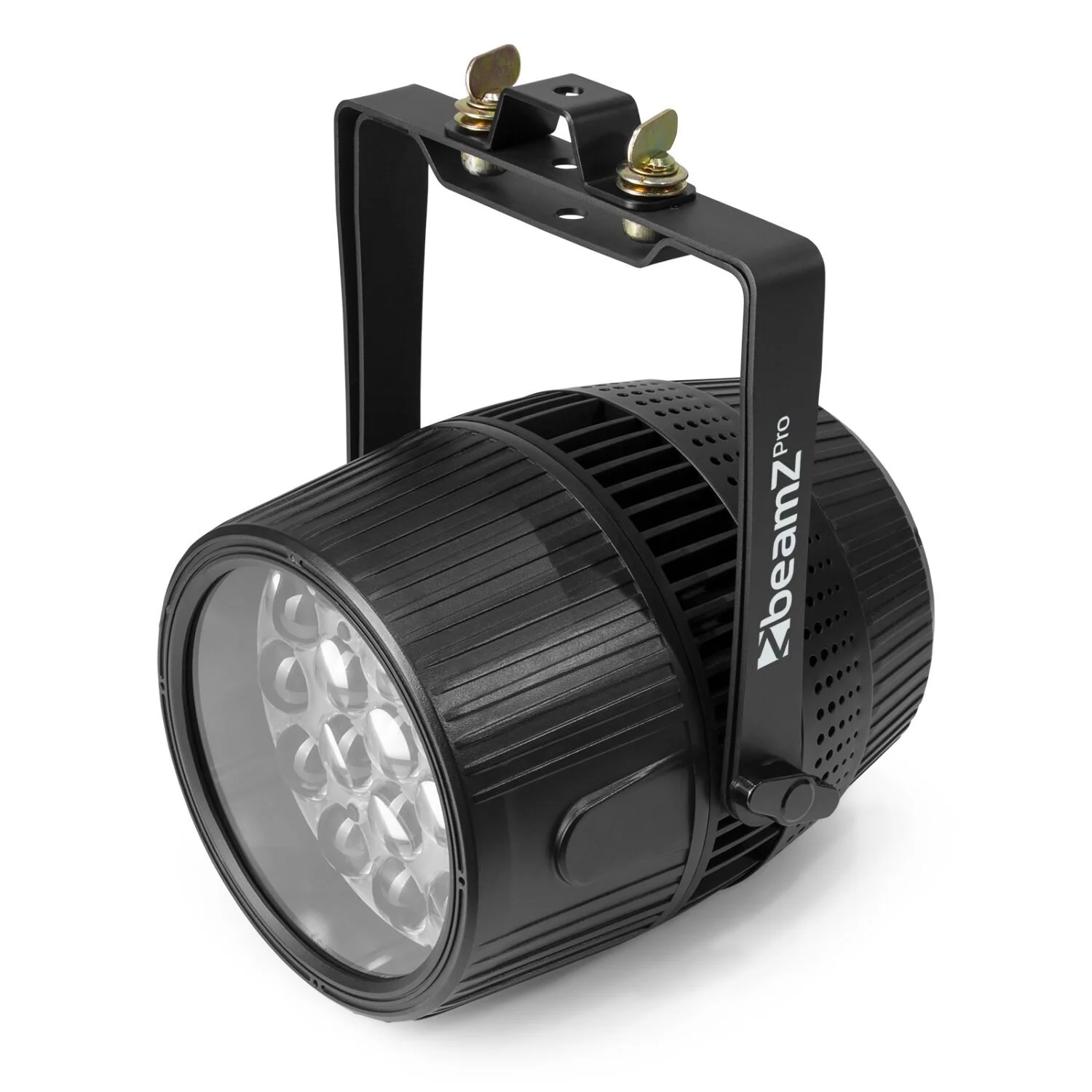

The BWA550Z is part of a series of new generation Pro LED PAR fixtures designed for various purposes such as stage and architectural lighting. This weatherproof robust Pro PAR can be controlled via different DMX settings in 3 separate controllable LED zones. The PAR features 19 LED modules with large lenses, giving you the ability to mix any colour! The BAC550Z also has a motorized zoom lens allowing the fixture to create fantastic beam or wash effects. The additional P-Con output allows you to easily connect the power of multiple units to one outlet.


The BWA550Z is part of a series of new generation Pro LED PAR fixtures designed for various purposes such as stage and architectural lighting. This weatherproof robust Pro PAR can be controlled via different DMX settings in 3 separate controllable LED zones. The PAR features 19 LED modules with large lenses, giving you the ability to mix any colour! The BAC550Z also has a motorized zoom lens allowing the fixture to create fantastic beam or wash effects. The additional P-Con output allows you to easily connect the power of multiple units to one outlet.


Specifications



Product colour Black

Light source 4-in-1 LED

Colours Red, Green, Blue, White

LED power (single LED) 15W

Quantity of LEDs 19

Beam angle: Min 2°

Beam angle: Max 25°

Field angle: min 10°

Field angle: max 51°

Illuminance 88.808 lx @ 1m

Flash rate per second 1 - 20Hz

DMX channels 11, 22

DMX connection 3-pin XLR

Modes Automatic programs, DMX, Manual, Master/Slave

IP rating IP65

Cooling Temperature controlled fan

Display oLed

Power plug P-Con TR1

Power consumption 2.63 - 1.28A

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) 370 x 296 x 218 mm

Weight (kg) 9.4000

Included accessories Mounting bracket, Power cable, DMX cable
