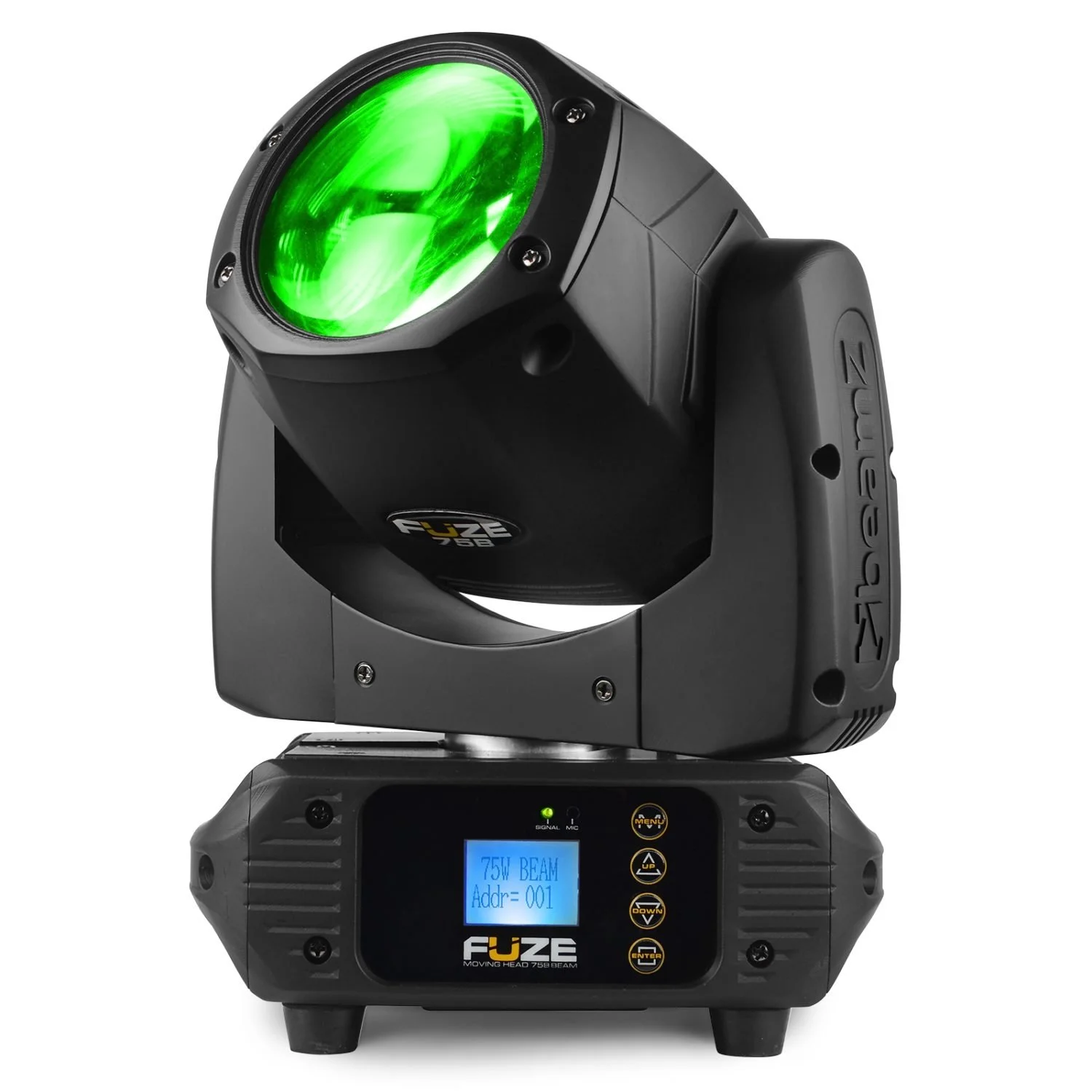

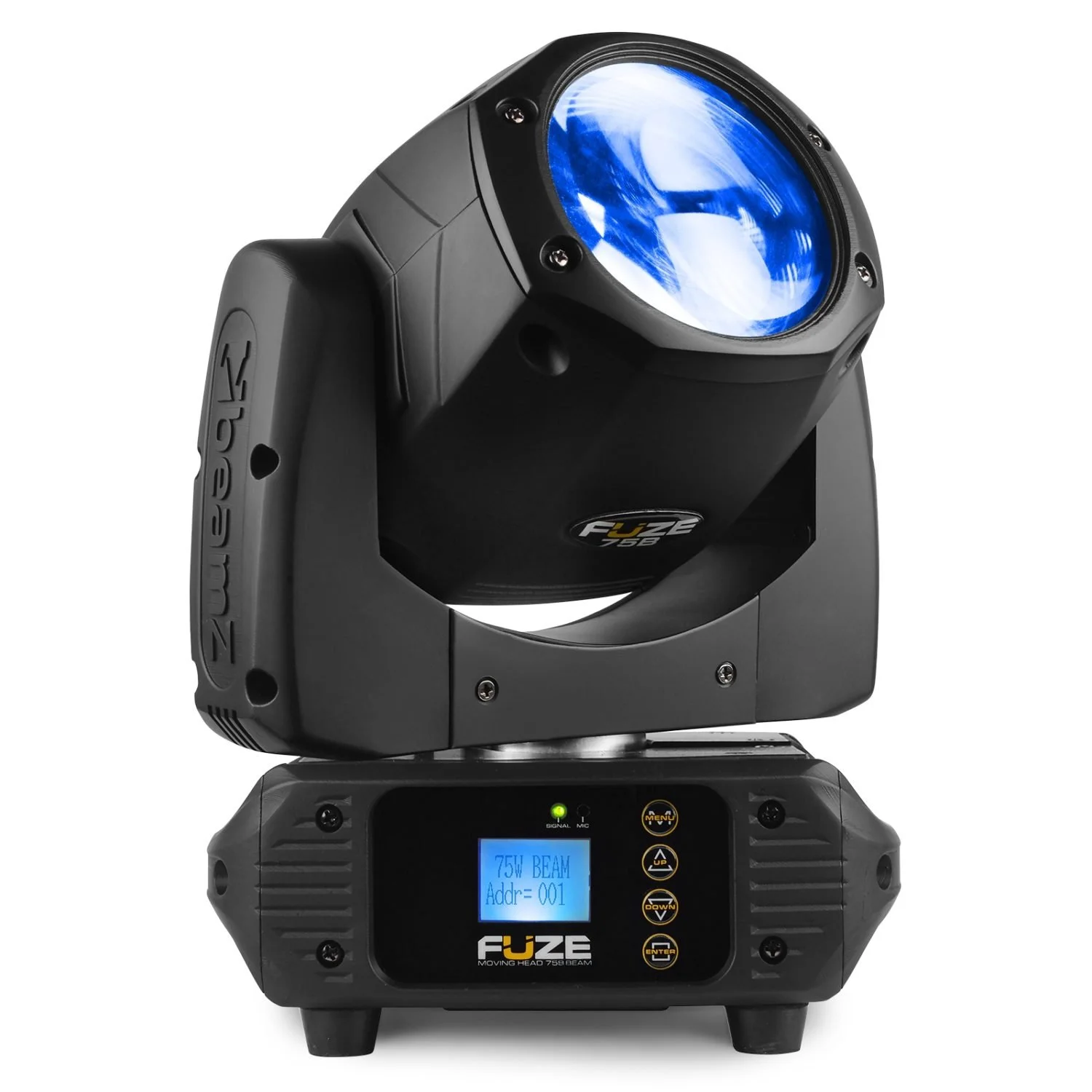

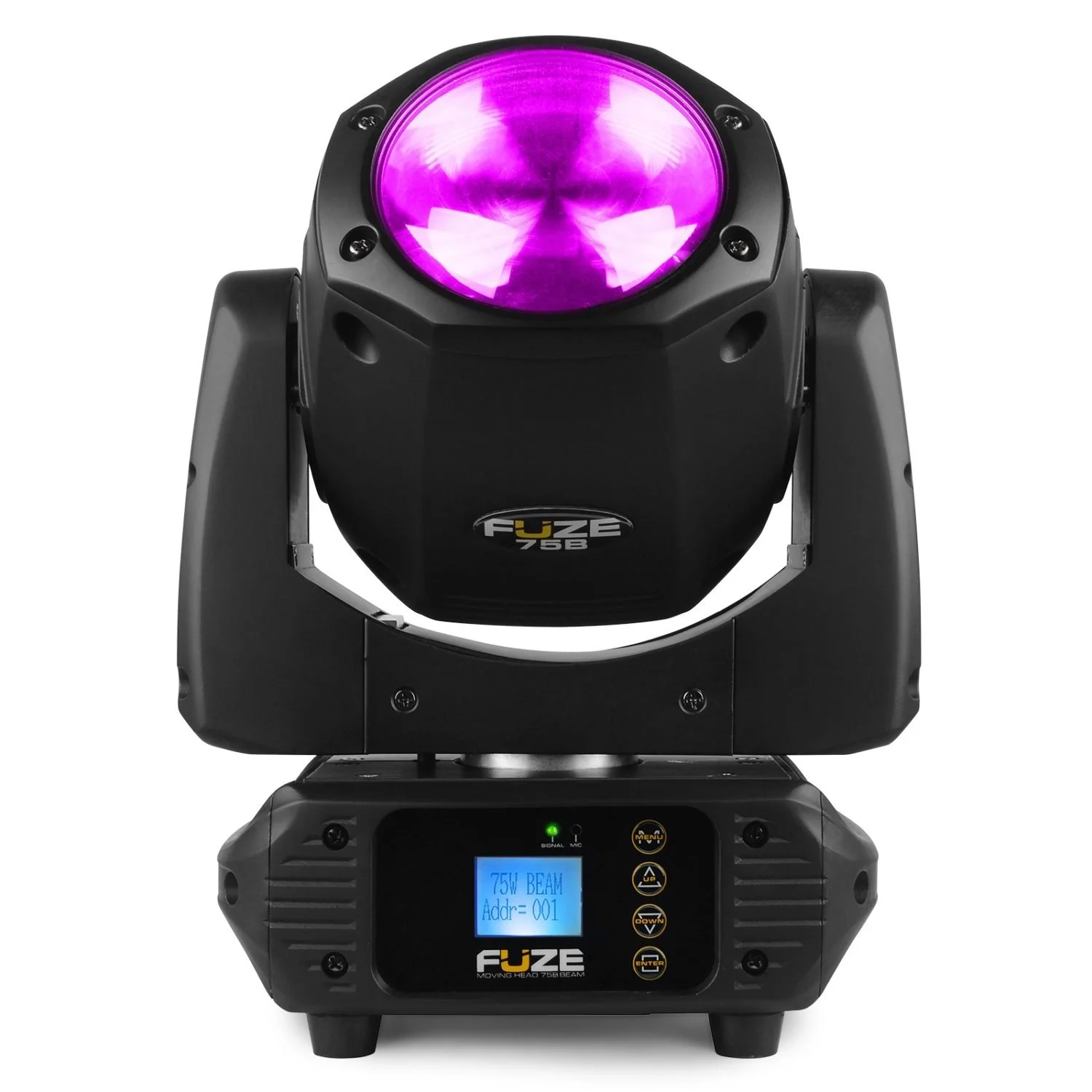

BeamZ Pro - Fuze75B LED Beam Moving Head

449,00 €

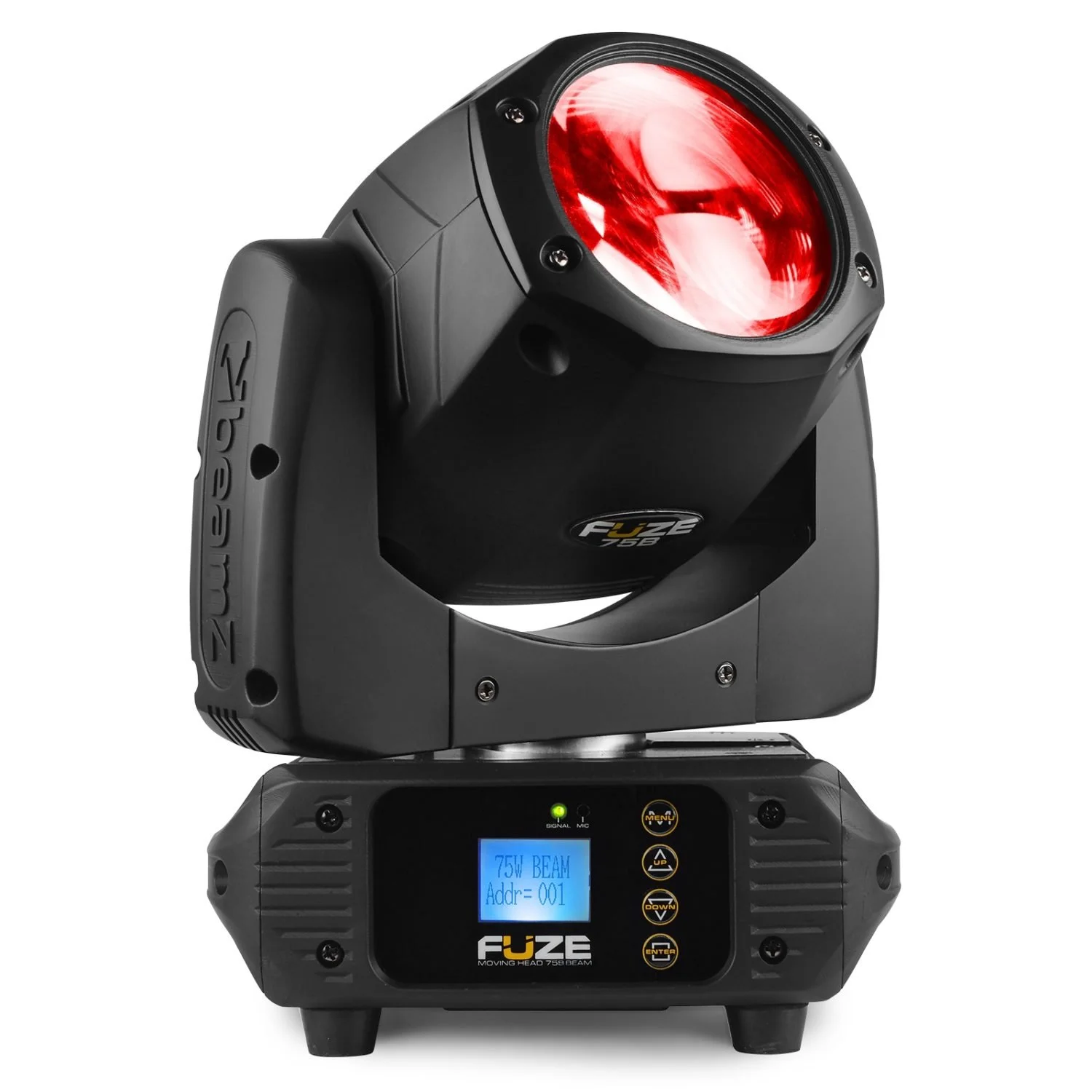

The Fuze75B Beam LED Moving Head is a lightweight, compact and ultra-fast moving fixture with an extremely sharp and narrow beam. The Fuze75B is equipped with a powerful 75W LED and features a frost filter which converts the tight beam to a wide wash for different applications. The 2 degree beam angle make this the ideal fixture to use for long range gobo projection and sharp beam figures. Operation via DMX, Auto mode with exiting built-in light shows, Sound Active Mode or linked in Master/Slave mode. Perfect for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical.


The Fuze75B Beam LED Moving Head is a lightweight, compact and ultra-fast moving fixture with an extremely sharp and narrow beam. The Fuze75B is equipped with a powerful 75W LED and features a frost filter which converts the tight beam to a wide wash for different applications. The 2 degree beam angle make this the ideal fixture to use for long range gobo projection and sharp beam figures. Operation via DMX, Auto mode with exiting built-in light shows, Sound Active Mode or linked in Master/Slave mode. Perfect for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical.


Specifications



Light source Single colour LED

Colours White

LED power (single LED) 75W

Quantity of LEDs 1

Colour wheel 12 colours + open

Beam angle 2°

Illuminance 190.000lx1m

Head movement: Pan 630

Head movement: Tilt 270

Static gobo: Quantity 17

Gobo shake Yes

Prisma 1 8 Facet

Flash rate per second 1 - 11Hz

Modes Automatic programs, DMX, Master/Slave

Sound to light mode Yes

DMX channels 10, 12

DMX connection 3-pin XLR

Display LCD

IP rating IP20

Cooling Temperature controlled fan

Power plug P-Con

Power consumption 1.6 - 0.8A

Power supply 100-240VAC 50/60Hz

Dimensions (L x W x H) 245 x 230 x 290

Weight (kg) 5.2000

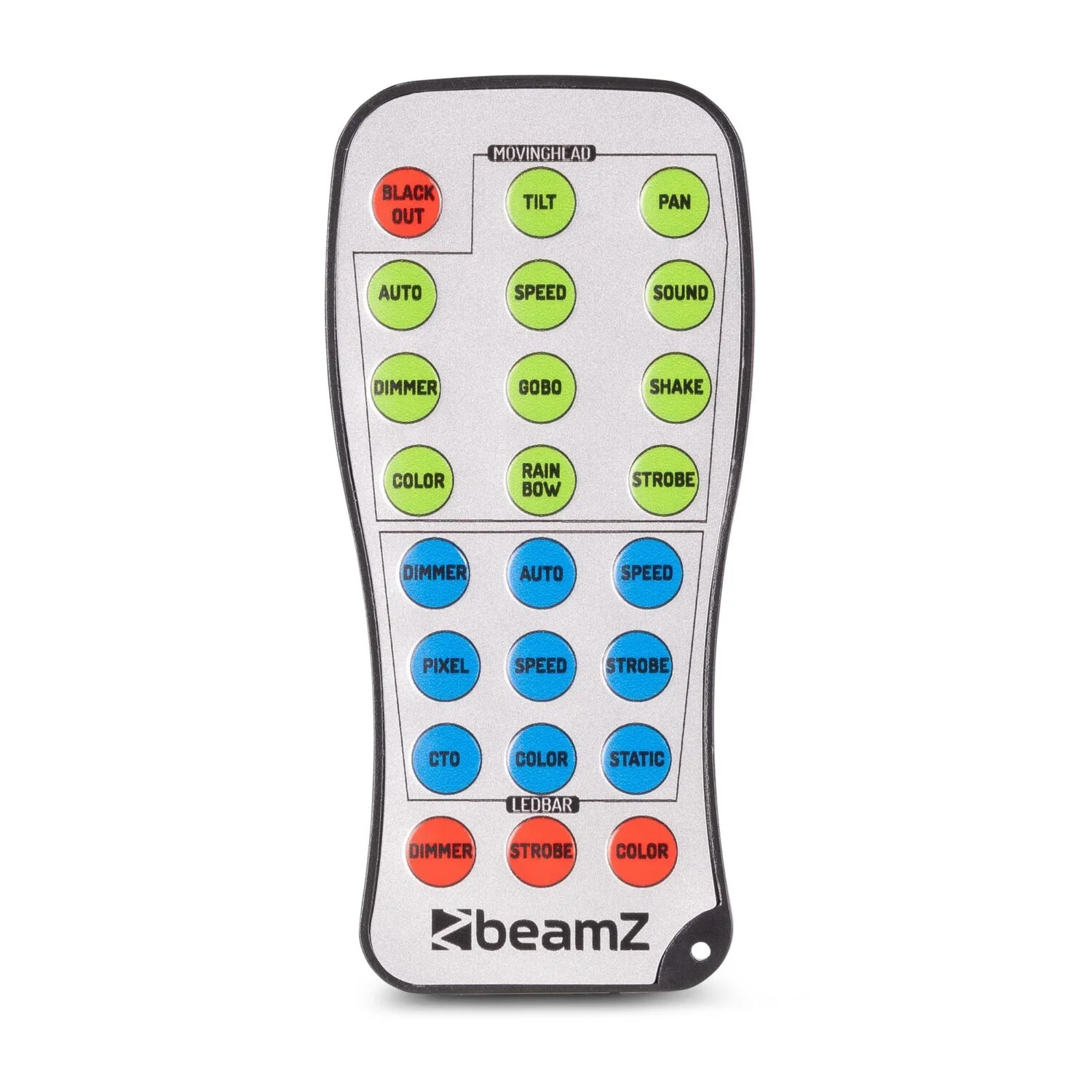

Included accessories Remote control (wireless), Mounting bracket, Safety cord, Power cable, DMX cable
