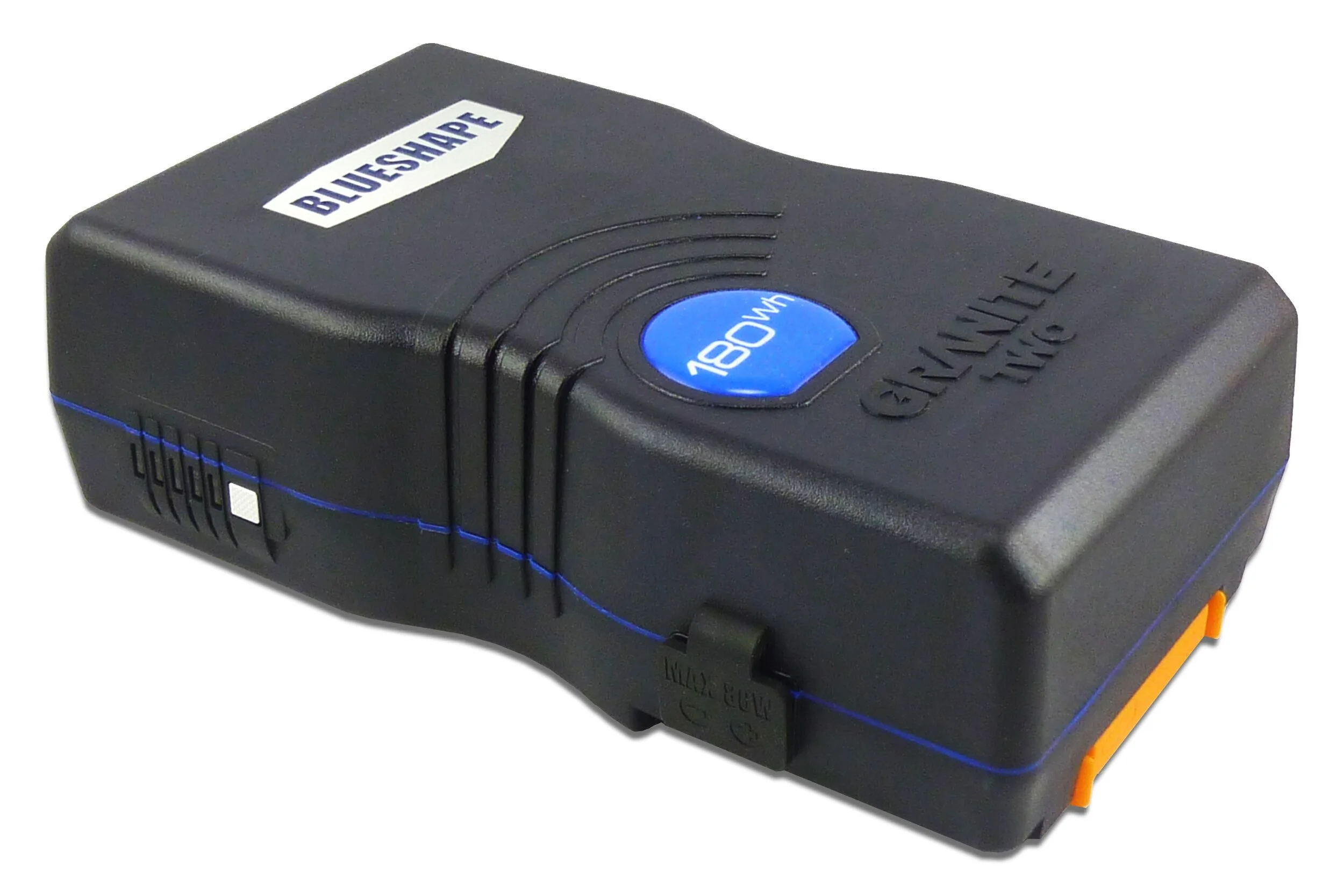

Blueshape BV180 TWO

Blueshape BV180 TWO

419,30 €

Medium sized Extreme Hi-Capacity pack, Wi-Fi enabled, with a rock solid construction incorporating 2x D-Tap connectors enabled for charging

Vlock Li-Ion Battery 180 Wh 12 Ah (4,5 mm tick), WIFI SYSTEM

APENAS POR ENCOMENDA
A sua encomenda será colocada directamente ao nosso fornecedor.

Quantidade:
Adicionar ao carrinho

Specifications:

  • GRANITE LINK, Wi-Fi enabled remote control

  • 2 Auxiliary D-Taps (nominal 14.8V) provide max 5A with independent overload protection. Left hand side D-Tap with independent overload protection. Right hand side D-Tap is direct and can be used as a charging inlet

  • GRANITE construction, robust, shockproof and IP54 certified

  • Enhanced contact protection for safer air transport

  • Nominal Voltage: 14.8V

  • Voltage range: 10.8V ~ 16.8V

  • Nominal Capacity: 12.0Ah, 180Wh

  • Max. discharge current: 9A

  • Medium size and lightweight

  • Size: 171 x 95 x 53mm (6.73" x 3.74" x 2.08")

  • Weight: 1.19Kg (2.62lbs)

Description:

BLUESHAPE is upgrading the GRANITE line-up, proudly introducing GRANITE TWO - the new series of battery packs featuring the innovative and handy Wi-Fi connectivity.

The GRANITE construction features remarkable resistance to impacts and bumps, ideal for harsh production environments.

Advanced modular design The lithium ion cells are secured inside the pack in a carefully designed and reinforced modular cage. All the metal interconnections and the electronic BMS board are integrated with the cells making a single core. No wiring is used. The metal, cell-to-cell tabs have been thickened using lower resistance alloy for improved welding strength and superior electrical conductivity. D-Tap sockets are modularly deployed on each pack side and externally protected with snap on rubber caps.

Rock Solid Construction The external V-Bracket is screwed to the inner core through the bottom case, by means of a reinforcement metal plate. The outer battery pack shells wrap the inner core and clamp it with 8 perimeter screws. A coloured rubber gasket is sandwiched in the middle between the outer shells to improve water resistivity apart from giving the battery, a smarter look.

Superior resin The outer shells are made of 4mm thick automative grade plastic resin featuring superb toughness and impact resistance even at low temperatures.

IP54 Certified The superior GRANITE construction features an outer shell and insulations rated IP54 that guarantee protection and safety of operations against dust and water.

Improved overall pack longevity The battery system as a whole will benefit from this robustness because of the reduced risk of internal disconnection or malfunction caused by unexpected crashes thus extending the overall pack life expectancy.

As a result all these significant technical improvements BLUESHAPE GRANITE battery packs are virtually indestructible. We have subjected them to intensive testing and we can safely say that such batteries can withstand several drops from heights up to 2 metres without suffering internal and external critical damages that render them unusable.

GRANITE, RUGGED AND RELIABLE

This moderately compact battery pack has an extremly high energy density, the the biggest in his size in terms of weight and volume, making this V-Mount battery at the top of its category. The new and superior “Nickel-based” Li-Ion chemistry provides superior and long lasting electrochemical performances. Although much more compact than its bigger brothers, its capacity is good to sustain a long runtime with any camera, including power hungry HD equipment. It has no problem discharging up to 9A continuously without overheating or suffering performance losses, and is best suited for applications needing a good compromise between runtime and reduce dimensions.

Featuring a 5 LED precise gauge for accurate capacity display integrated with state-of-the-art battery safety, balancing and monitoring technology and also providing digital communication with enabled devices. Furthermore, this battery provides 2 additional power outlets through D-Tap sockets conveniently located on the battery sides. These are electronically and independently protected against shorts and overload so as not to compromise the battery's main supply and provide power up to 5A. They can be conveniently used to power devices working at 14.8V nominal, or even USB powered gadgets and chargers through the PT-USB adapter.

It has IATA restrictions and can only be shipped as cargo.
