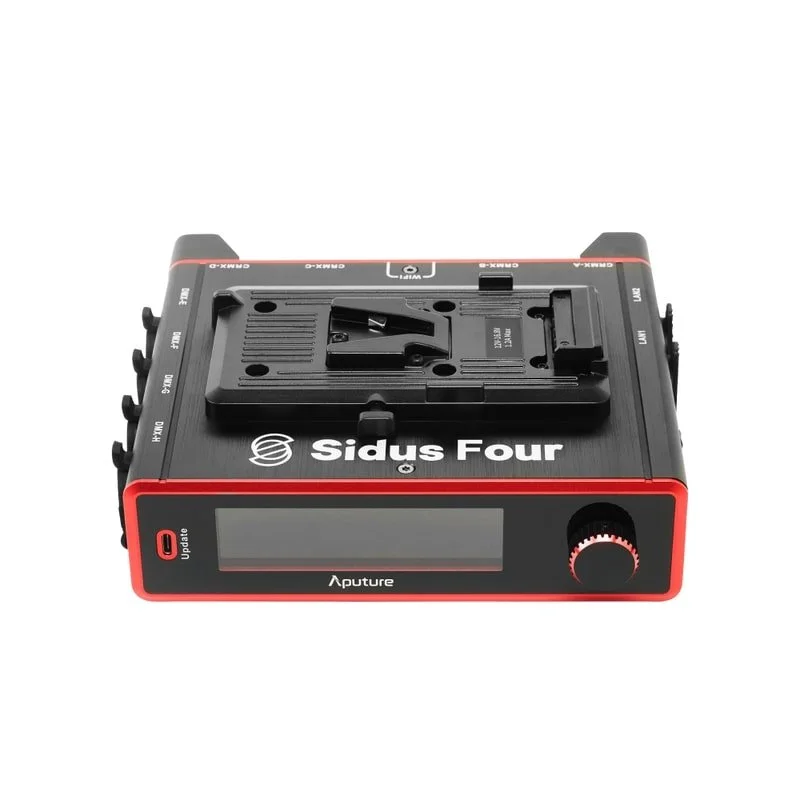

Sidus Four Aputure

Connectivity

CRMX, DMX512, Art-Net & sACN via Ethernet and Wifi

Universe Support

4 Wireless Universes & 4 Wired Universes

Ethernet Connectivity

2x RJ45 Ports at 100Mbps Each

Antenna Fitting Type (Body)

TNC - Female

Antenna Fitting Type (Antennae)

TNC - Male

DMX Connectivity

4x XLR 5-Pin DMX Bidirectional Female Ports

Wi-Fi Operating Frequency

5 GHz at 150Mbps

CRMX / Sidus BT Operating Frequency

2.4GHz

Bluetooth Wireless Range

≤300m / ≤984ft

Wi-Fi Wireless Range

≤800m / ≤2,625ft

CRMX Wireless Range

≤800m / ≤2,625ft

Wi-Fi Modes
AP mode/STA mode
CRMX Mode

TX mode

AC Adapter Operating Voltage

AC In: 100-240V DCOut:9V/18W

DC Jack

5.5/2.5mm DC Barrel Jack (9-24V) (3m)

V-Mount

V-Mount Battery Plate (12-16.8V)

Lithium Polymer Battery

3.7V 1500mAH

Backup Battery Life

80 min

Power Consumption

17W Max, 6W Normal (W/O: Charging, Type-C Output)

Charge Time

30 min

IP Rating

IP65

Operating Temperature

-20°C to 55°C / -4°F to 131°F

Firmware Upgradeable

Sidus BT, USB-C, Sidus Link Pro Wifi

Cooling Method

Passive Cooling

Dimensions

Dimensions (Excluding Antenna)

18.7 x 18.6 x 6.9cm / 7.4 x 7.3 x 2.7in

Weight

Weight

1.40kg / 8.82lbs
