Specifications:

Input:

• AC 100-240V 47-63Hz

Output:

• 8x DC 16.8V 4.8A

• 2x AUX DC 13.8V 110W max.

Charging current:

• 4.8A per channel when 4 batteries are charging

• 3.0A per channel when more than 4 batteries are charging

Data socket

Provided with a bracket for easier wall installation

Size: 620 x 410 x 110 mm (24.40" x 16.14" x 4.33")

Weight: 9.7Kg (21.44lbs)

Description:

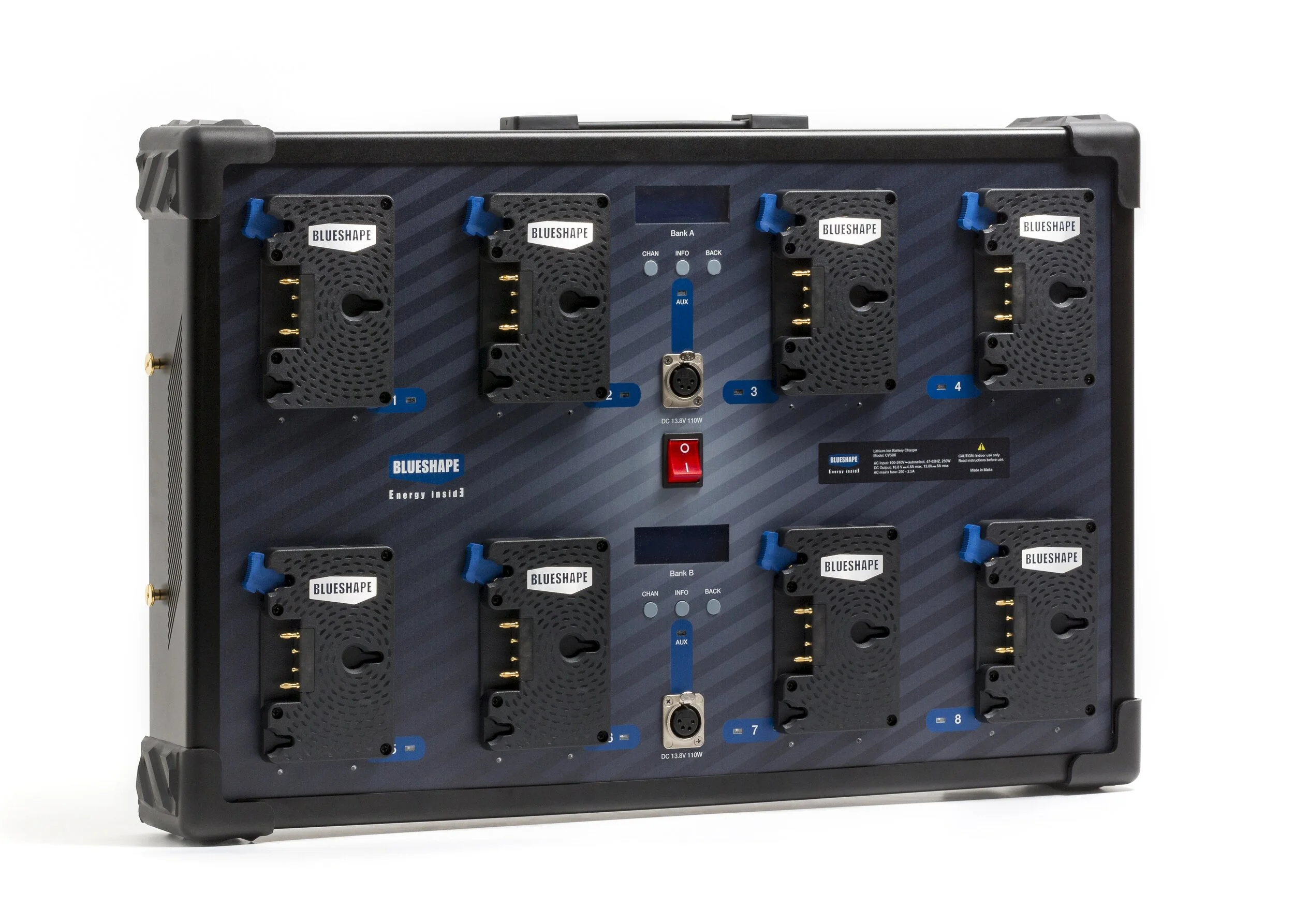

Designed exclusively for 3-Stud Li-Ion batteries, can charge up to 8 batteries fully simultaneously of any brand.

2 LCD display shows battery digital information in real time like state of charge, charge time to full and status information, one LCD for each group of 4 batteries (more detailed information are available only for BLUESHAPE 3-Stud batteries).

Rugged and simple wall mounting system by means of a special metal bracket for easy indoor installation and use. It can easily be mounted in a production vehicle and just as easily removed in case of need.

Compact, robust and slim design to minimize space occupancy.

Redundant electronic design with 4 power supplies for increased reliability, it features IPCS and CTP for improved battery and charger protection.

Provided with 2 Auxiliary DC output power source at 13.8V 110W through an XLR 4 pin socket.

USB connection to interface the CVS8XW with computer: up to 4 chargers can be monitored by a single PC through BSCVMon (provided in the box).
